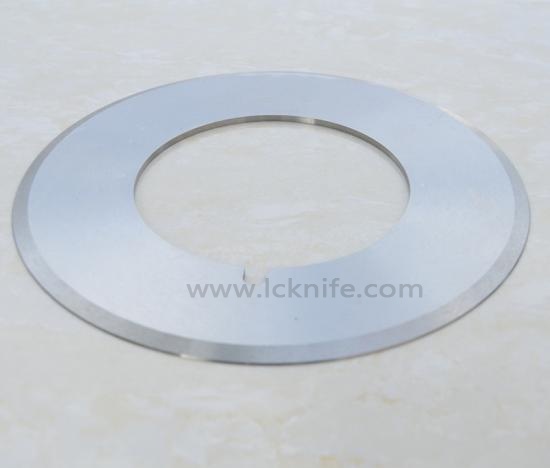

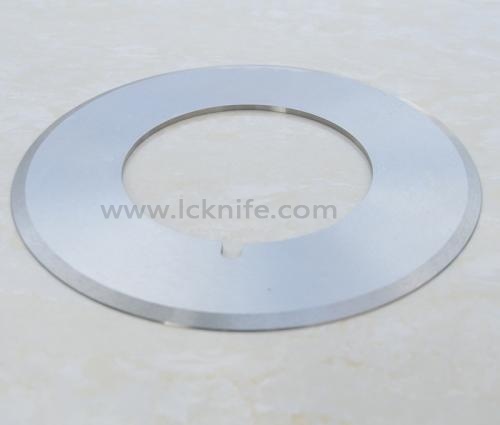

Bottom Slitter Knives and blades for Packaging Industry

Simply Detailed Parameters :

1. Basic size (ODxIDxT) : 105x80x3/5mm

2. Material: SKD11

3. Hardness: 58-59HRC

4. Angle of sharpening edge: 3 degrees

5. One ring in the middle to pretect shaft from demage of screw

6. Size of step 1mm one side

  • Order(MOQ):

    10
  • Shipping Port:

    shanghai
  • Lead Time:

    5-30 days after order
  • Product Detail

Product Description:


Bottom Knife works with dished knife to slit rolled products like paper, film, tape, fabrics and so on into smaller rolls.

Simply Detailed Parameters :

1. Basic size (ODxIDxT) :105x80x3/5mm

2. Material: SKD11

3. Hardness: 58-59HRC

4. Angle of sharpening edge: 3 degrees

5. One ring in the middle to pretect shaft from demage of screw

6. Size of step 1mm one side


Popular Parameters:


Basic size (ODxIDxT)

Material

50x25x10mm

GCr15/ 9SiCr/ SKD11

60x40x5/3mm

GCr15/ 9SiCr/ SKD11/ HSS

90x65x5/3mm

9CrSi/SKD11/HSS

105x80x10/9mm

SKD11/HSS

80x60x10/8mm

GCr15/ 9SiCr/ SKD11

250x188x25mm

GCr15/ 9SiCr/ SKD11/ HSS insert/ TCT insert

300x270x92mm

GCr15/ 9SiCr/ SKD11


Our advantages:


1. Our Factory is focusing on producing all kinds of slitting and cutting blades.

Blades provided are durable, precise and productive with a longer service life.

2. Our factory will provide professional advice involved selection of material and processing technology to meet our customer's requirements about a good use of slitting or cutting tool.

3. We have a strict quality control system, and strict inspection report to ensure client a exceeded standard product at competitive price.

4. Experienced and excellent over 21 years, always satisfy client with high level of commitment to quality and service.

5. Large production capability, abundant stock of standard knifes, and any customized dimension is available!



Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
Related Products
bottom knife
High quality round bottom slitting knife
Bottom Knife works with dished knife to slit rolled products like paper, film, tape, fabrics and so on into smaller width rolls. You will find the right blades here, dished knife, bottom knife, knife holder, disk knife, teeth knife, dotted knife, guillotine cutting knife, customized knife, with multiple choices of materials, available for different use. 1. Premiun material selected for different knife applications; 2. Superior precision with strict inspection to meet high requirements; 3. Excellent service life with reasonable prices; 4. Large production capability, abundant stock, available customization. Detailed Parameters of picture disck counter knife : 1. Basic size (ODxIDxT) : 118X80X8/10mm 2. Material: SKD11 3. Angle of sharpening edge: 3 degrees 4. One ring in the middle to pretect shaft from demage of screw 5. Size of step 1mm one side
dished knife
High quality top dished knife for paper slitting
Dished Knife should be assembled with a suitable knife holder installed on a shaft of rewinding machine, working together with bottom knife on another shaft to slit rolled products like paper, film, tape, fabrics and so on into smaller width rolls. You will find the right blades here, dished knife, bottom knife, knife holder, disk knife, teeth knife, dotted knife, guillotine cutting knife, customized knife, with multiple choices of materials, available for different use. 1. Premiun material selected for different knife applications; 2. Superior precision with strict inspection to meet high requirements; 3. Excellent service life with reasonable prices; 4. Large production capability, abundant stock, available customization. Detailed parameters of picture slitter knife: 1. Basic size (ODxIDxT) : 62x40x1mm 2. Material: SKD11 3. Bevel: one 4. Dished angle: 5 degrees.
Eccentric knife holder
Eccentric Knife holder for slitting dished knife
Eccentric knife holder is ideal for narrow papers mostly, providing the stability and durability of a wide range of slitting applications. Achievable narrow sltting strips. Easier adjustment;  No harm to knife holder shaft; Higher precision than screw knife holder; Tighter fitting. Well usged materials of Eccentric knife holder: C45, Stainless steel
top and bottom circular slitting knife
Top and bottom circular slitting cutting knives
Top and bottom circular slitters are used on slitting and rewinding machine for paper, film, metal sheet and so on slitting. Circular slitter blades are widely apply to packaging industrial, printing industrial, rubber industrial, metallurgical industrial, paper industrial.
bottom slitter
Eccentric Bottom Slitter Knives for Packaging industry
Eccentric slitting bottom knife is different from normal screw bottom knife. And the advantages are distinct: Much easier adjustment; No harm to knife shaft; Higher precision than screw bottom knife; Tighter fitting. Simply Detailed Parameters : 1. Basic size (ODxIDxT) :70x45x20/20mm 2. Material: SKD11 3. Hardness: 58-59HRC
knife holder
Knife holder for industrial knife
Circular knife holder is also called knife holder for round knives & Rotary Slitter Knives, are characterized by their mostly circular shape with corresponding diameter Ø. Their cutting geometries are either flat, slotted or toothed cutting edge, is mainly used in coiling machine for metal sheet like mild steel, stainless steel, aluminum,copper,galvanized sheet and cold or hot rolled plate trimming and slitting. Knife holder below is specialized for lithium poles slitting knifes with an extremely high tolerance at thickness, flateness and concentricity.
slitting knife
High quality industrial carbide disk knife
Paper cutting circular blade from Licheng Blade Manufatory is always popular with clients worldwidely. Use only premiun material selected for knife application of different machines, cardboads, and speeds; Excellent products wtih longer service life at reasonable prices; Large production capability, abundant stock, available customization. Detailed parameters: 1. Basic size (ODxIDxT) : 210x122x1.3mm 2. Material: HSS/TCT 3. Hardness: 62-64HRC / 90-96HRA 4. Bevel & Angle: two bevels on two faces
slitting knife
Best selling tobacco industrial carbide disk knife from licheng factory
Cutting & slitting circular blade from Licheng Blade Manufatory is always popular with clients worldwidely. Use only premiun material selected for knife application of different machines, speeds, and products of papers, cigaretter, fiber, film, tape, cardboads, cloth, fabric, rubber, foods and so on; Excellent products wtih longer service life at reasonable prices; Large production capability, abundant stock, available customization. Detailed parameters: 1. Basic size (ODxIDxT) : 100x22x0.3mm 2. Material: TCT 3. Hardness: 90-96HRA 4. Bevel & Angle: one bevel each face
