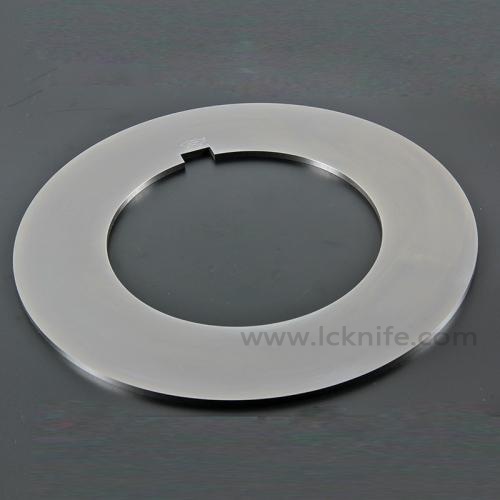

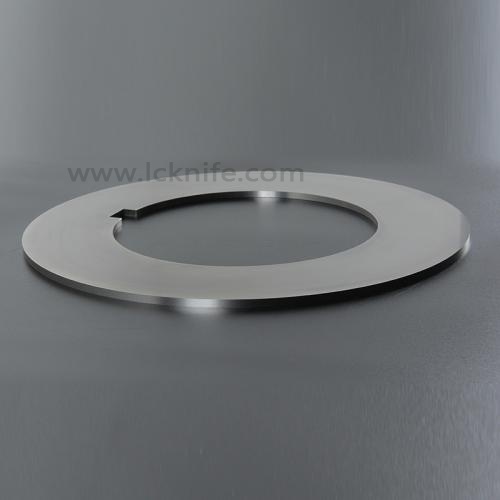

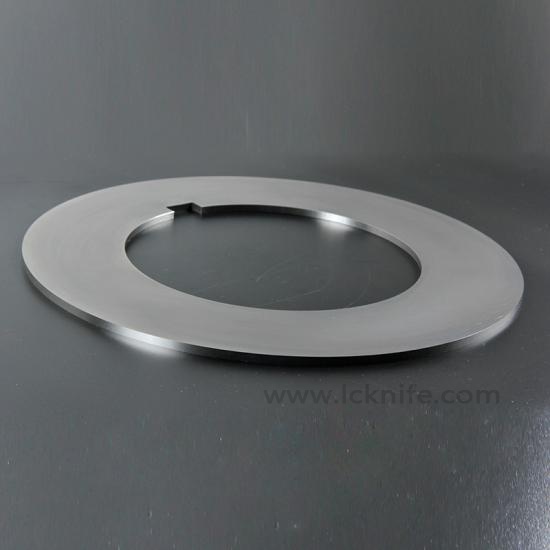

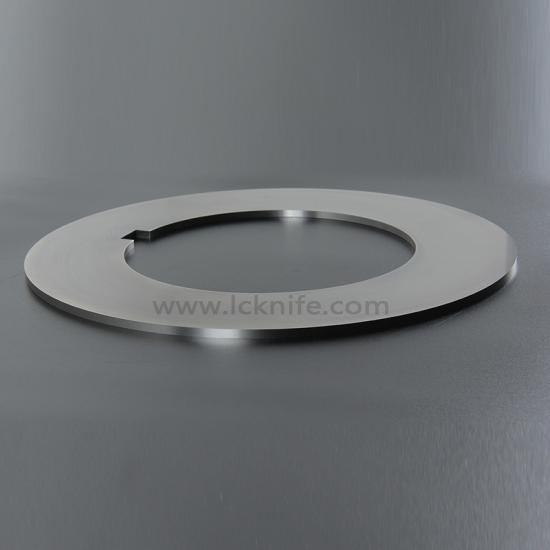

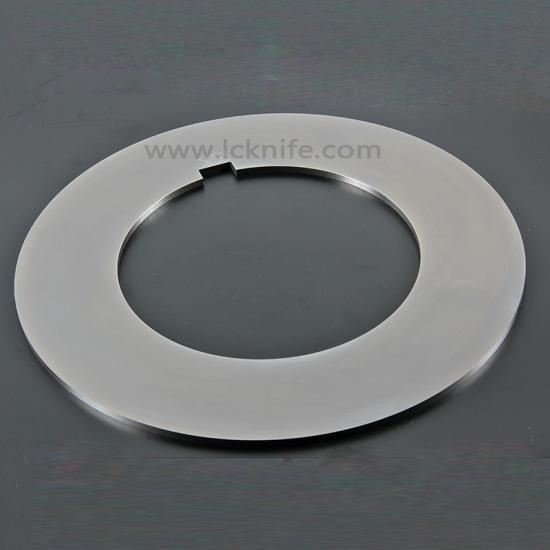

high tensile strength steel shear blade/metal cutting knife

基本尺寸：220x115x4mm（OD-ID-T）

材质：高速钢

硬度：61-64 HRC

切割边缘：无毛刺，边缘修整光滑

要尽快获得此剪切刀片的报价或更多详细信息，

请发送电子邮件至 phoebe@lcblade.com

或 WhatsApp +86 13399550005

利成金属分切刀用于分切热冷低碳钢、不锈钢、铝、钴、镀锌板、硅钢等卷带。我们具有生产外径最大 680mm 的分切刀的能力，材料包括 Cr12MoV、D2、W6Mo5Cr4V2、W18Cr4V、H13、H13K、H13Ni、HMB、LD 和特殊定制材料（用于高强度钢板、取向和无取向硅钢分切）。利成的分切刀一直受到高度要求

1. 耐磨、价格昂贵

2.先进的热处理

3.根据客户产品选择优质的刀具原材料和硬度

4.严格检验，优质服务

Order(MOQ):
10
Shipping Port:
shanghai
Lead Time：
5-30 days after order

INQUIRE now

Categories

Hot Products

Product Detail

产品描述：

利成金属分切刀 用于分切热冷低碳钢、不锈钢、铝、钴、镀锌板、硅钢等卷带。我们具有生产外径最大 680mm 的分切刀的能力，材料包括 Cr12MoV、D2、W6Mo5Cr4V2、W18Cr4V、H13、H13K、H13Ni、HMB、LD 和特殊定制材料（用于高强度钢板、取向和无取向硅钢分切）。利成的分切刀一直受到高度要求

1. 耐磨、价格昂贵

2.先进的热处理

3.根据客户产品选择优质的刀具原材料和硬度

4.严格检验，优质服务

详细参数：

隔膜材质	Cr12MoV、D2、W6Mo5Cr4V2、W18Cr4V、H13、H13K、H13Ni、HMB、LD、高强度钢、取向、无取向硅钢分条专用定制材料
厚度公差	±0.00008”
硬度	相应为53-65HRC
外径公差	±0.001”
内部并行性	0.0001”
平整度	0.0001”
同心度	0.001”
最大表面粗糙度	Ra0.1-0.2

我们的优势：

1.本厂专业生产各种分切刀片。

所提供的刀片耐用、精确、高效且使用寿命更长。

2.我厂将提供涉及材料选择和加工工艺的专业建议，以满足客户对分切或切割工具的良好使用要求。

3.我们有严格的质量控制体系和严格的检验报告，以确保客户以有竞争力的价格获得超出标准的产品。

4. 21年来经验丰富、品质卓越，始终以高水平的质量和服务承诺让客户满意。

5.生产能力强，标准刀具库存充足，可定制任何尺寸！
