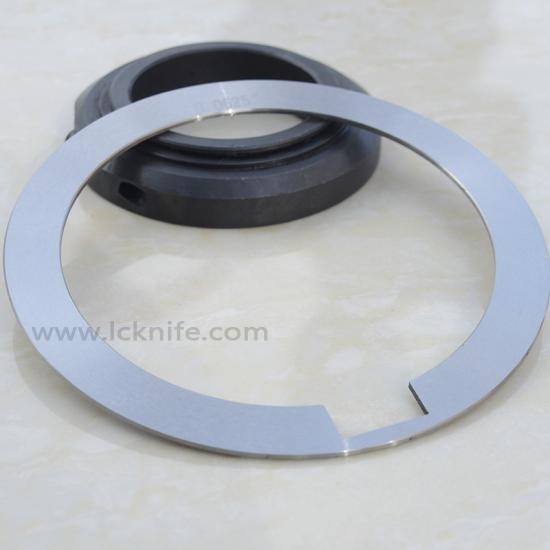

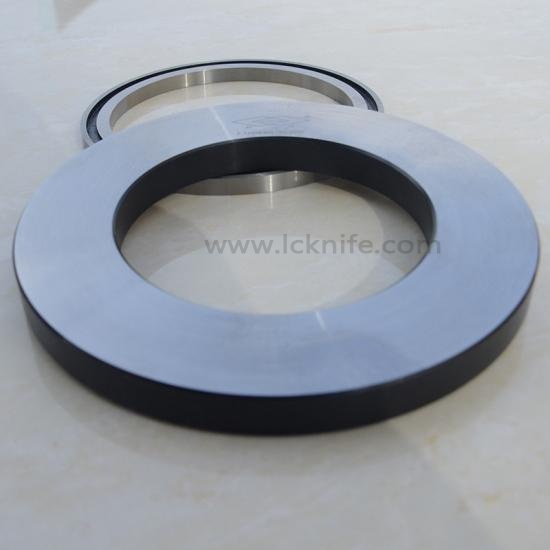

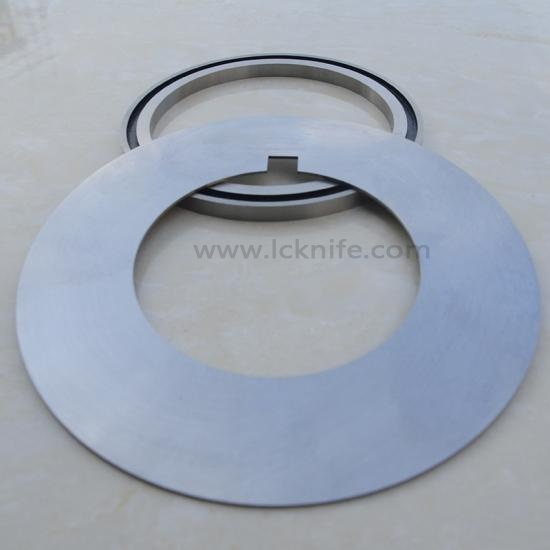

Industrial maching durable metal spacer for slitting machine

Metal spacer is used on slitter shaft to adjust different distance between slitting knifes according to needed width of coiling strips, which should be the same as precision as knife. resonable prices, wear resistance, but lighter for ensuring high precision of slitting strip and easier assembling operations. Well used materials of metal spaces:

40Cr, S45,65Mn,9CrSi,GCr15,and stainless steel.

  • Order(MOQ):

    10
  • Shipping Port:

    shanghai
  • Lead Time:

    5-30 days after order
  • Product Detail

Product Description:


Coil slitter knife is used on slitter shaft to adjust different distance between slitting knife according to needed width of coiling strips, and that makes it is same precise as slitter knifes.

Reasonable price, not as expensive as knife of raw material;

Wear resistance, but lighter for machine shaft to ensure higher precision of slitting strip and easier assembling.

Slitting blade spacer is well used materials of metal spacers: 40Cr, S45, 65MN, 9SiCr, GCr15, and Stainless steel and so on.


Detailed Parameters:



Material of separator

40Cr, S45, 65MN, 9SiCr, GCr15, and Stainless steel

Thickness tolerance

±0.00008"

Hardness

42-55HRC

outside diameter tolerance

±0.001"

parallelism within

0.0001"

flatness within

0.0001"

concentricity within

0.001"

max surface roughness

Ra0.2


Popular size and material of separator:

Basic size (ODxIDxT)

Material

100x70x3mm

SUS420

150x80x4mm

3Cr13

300x150x8mm

52100

320X160X10mm

9CrSi


Our advantages:




1. Our Factory is focusing on producing all kinds of slitting and cutting blades.

Blades provided are durable, precise and productive with a longer service life.

2. Our factory will provide professional advice involved selection of material and processing technology to meet our customer's requirements about a good use of slitting or cutting tool.

3. We have a strict quality control system, and strict inspection report to ensure client a exceeded standard product at competitive price.

4. Experienced and excellent over 21 years, always satisfy client with high level of commitment to quality and service.

5. Large production capability, abundant stock of standard knifes, and any customized dimension is available!




Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
