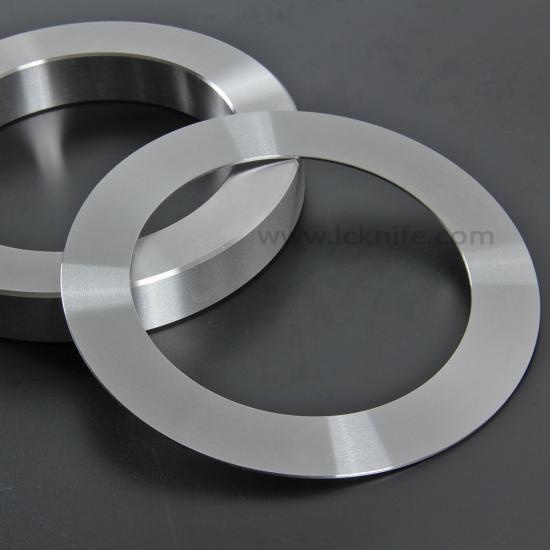

metal coil round slitting knife with best material H13 D2 LD

Basic size: 250x220x1mm (OD-ID-T)

Material: SKH-9

Hardness: 62-64 HRC

Cutting edge: no burr, smooth side trimming

To get a quote or more details sooner about this shear blade  ,

please email us at phoebe@lcblade.com

OR whatsapp +86 13399550005

Metal slitter knife
of Licheng
is used to slit hot and cold mild steel, stainless steel, Al, Co, galvanized sheet, silicon steel,  and so on coiling strips. We have manufacturing capability of production slitting knife size up to 680mm at OD with material  Cr12MoV, D2, W6Mo5Cr4V2, W18Cr4V, H13, H13K, H13Ni, HMB, LD, and special customized materials (for high tensile steel sheet, oriented and non-oriented silicon steel slitting). Slitter knifes from Licheng is always highly required with

1. Wear resistance & high pricesion

2. Advanced heat treatment

3. Superior choice of raw material and hardness of knife according to clients' products

4. Strict inspection & best service


  • Order(MOQ):

    10
  • Shipping Port:

    shanghai
  • Lead Time:

    5-30 days after order
  • Product Detail

Product Description:


Metal slitter knife
 of Licheng is used to slit hot and cold mild steel, stainless steel, Al, Co, galvanized sheet, silicon steel,  and so on coiling strips. We have manufacturing capability of production slitting knife size up to 680mm at OD with material  Cr12MoV, D2, W6Mo5Cr4V2, W18Cr4V, H13, H13K, H13Ni, HMB, LD, and special customized materials (for high tensile steel sheet, oriented and non-oriented silicon steel slitting).  Slitter knifes from Licheng is always highly required with

1. Wear resistance & high pricesion

2. Advanced heat treatment

3. Superior choice of raw material and hardness of knife according to clients' products

4. Strict inspection & best service


Detailed Parameters:


Material of separator

Cr12MoV, D2, W6Mo5Cr4V2, W18Cr4V, H13, H13K, H13Ni, HMB, LD,

specially customized materials for high tensile steel, oriented, non-oriented silicon steel slitting

Thickness tolerance

±0.00008"

Hardness

53-65HRC accordingly

outside diameter tolerance

±0.001"

parallelism within

0.0001"

flatness within

0.0001"

concentricity within

0.001"

max surface roughness

Ra0.1-0.2



Our advantages:


1. Our Factory is focusing on producing all kinds of slitting and cutting blades.

Blades provided are durable, precise and productive with a longer service life.

2. Our factory will provide professional advice involved selection of material and processing technology to meet our customer's requirements about a good use of slitting or cutting tool.

3. We have a strict quality control system, and strict inspection report to ensure client a exceeded standard product at competitive price.

4. Experienced and excellent over 21 years, always satisfy client with high level of commitment to quality and service.

5. Large production capability, abundant stock of standard knifes, and any customized dimension is available!


Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
