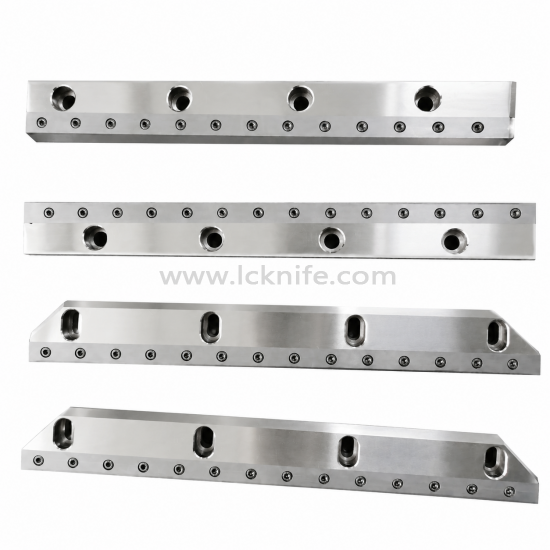

Shearing Machine Blades for Cutting Silicon Steel Sheet

Silicon steel cutting blades are indispensable, high-precision cutting tools in the manufacturing of core components for transformers and motors.

Shipping Port:
SHANGHAI
Lead Time：
10 Days

INQUIRE now

Categories

Hot Products

Product Detail

Product Description:

Metallurgical knife and tools are specially designed for steel processing uses in metallurgical industry, like steel sheet, steel rod and steel bar cutting, trimming, shearing, slitting or pressing. Especially for stainless steel, aluminum, copper, silicon steel, and other carbon or alloy steels.

Silicon steel cutting blade specializing in the production of variousmechanical blades, molds, etc.Silicon steel cutting blades are indispensable, high-precision cutting tools in the manufacturing of core components for transformers and motors.

Designed to handle the unique characteristics of silicon steel—such as ultra-thin gauge (down to 0.18 mm), high hardness, and rapid shearing frequencies—these blades leverage top-tier materials and precision manufacturing to deliver burr-free cuts, high precision, and a long service life.

Compatible Models	TBA-400/600/800/1000
Cutting material	Grain-oriented silicon steel sheets (silicon steel sheets) 0.23-0.35mm
Main material	Cemented carbide (tungsten steel); some old equipment uses high-chrome tool steel
Performance	Single-edge grinding cut ≥ 2 million times; cutting burr < 0.02mm
Application	Special cross-cutting production line for transformer silicon steel cores

Popular Parameters:

Silicon Steel Cutter(LWT)MM
500-50-30	600-60-35
700-50-35	800-65-35
900-55-30	1000-60-35
