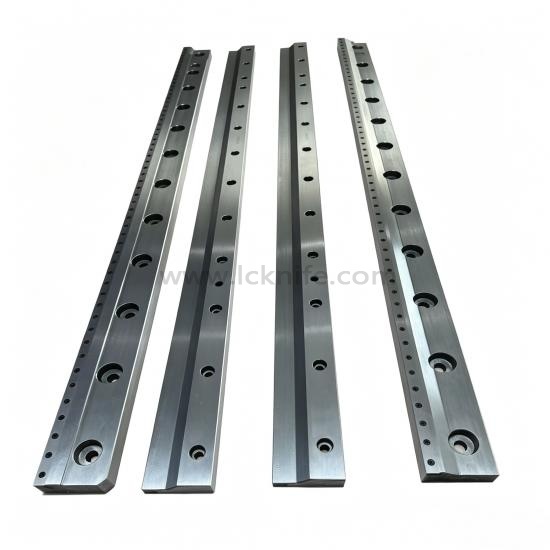

Silicon Steel Cutter Blades for Steel Sheet Cutting

Silicon steel cutting blades are key precision cutting tools used on cross-cutting machines/lines to cut silicon steel (electrical steel) during the manufacturing of electrical power equipment, such as transformer cores and motor stators/rotors.

Shipping Port:
SHANGHAI
Lead Time：
10 Days

INQUIRE now

Categories

Hot Products

Product Detail

Product Description:

Silicon Steel cutting blades are specially designed for German GEORG transformer silicon steel core cross-cutting production lines.

Main Models: TBA400, TBA600, TBA800, and TBA1000.

Application: Used for cutting 0.23–0.35 mm silicon steel sheets. The complete set of punching and shearing tools includes cross-cutting blades, V-notch punches, hole punching dies, and corner-shearing blades.

Because silicon steel (especially grain-oriented silicon steel) has high hardness and is extremely thin (typically 0.18 mm–0.35 mm thick), and the requirements for burr height and cut quality after shearing are exceptionally strict, cross-cutting blades must adhere to very high standards regarding material quality and machining precision.

Popular Parameters:

Silicon Steel Cutter(LWT)MM
500-50-30	600-60-35
700-50-35	800-65-35
900-55-30	1000-60-35

Get A Quote

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
